Hello all,
I've gotten requests to post a DIY on here for the headlight build for my car...this is my first DIY, and unfortunately, I have a limited number of pics, but here goes:

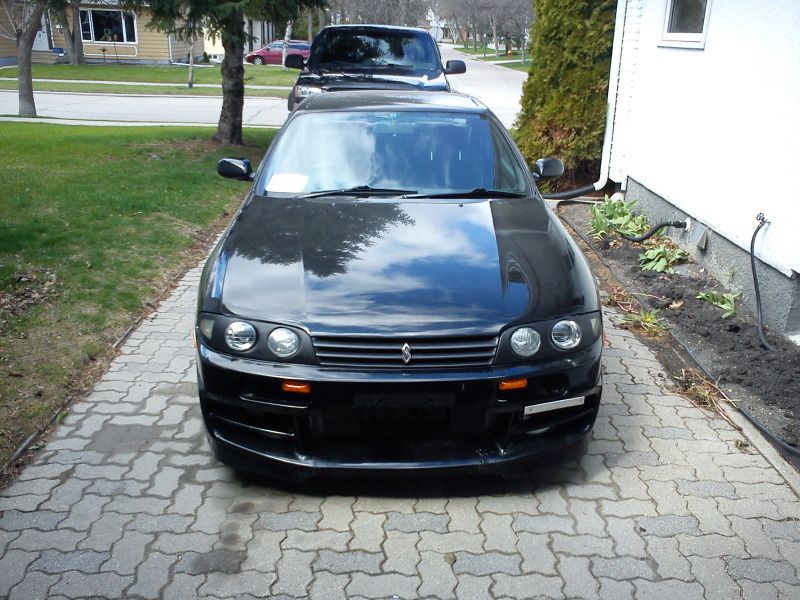

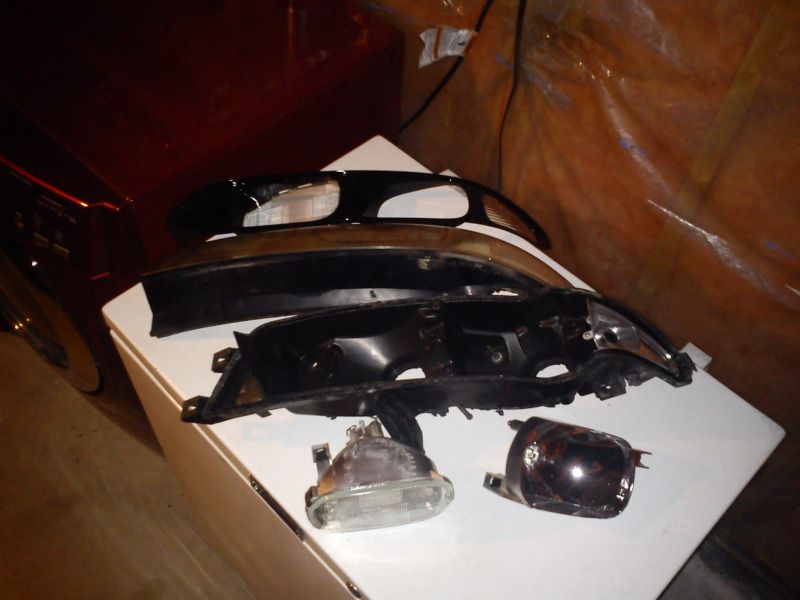

First off, I removed the stock headlights from the car, and disassembled them using the "bake open" technique described in many places...if you're not aware of this technique, I suggest google. Here is what the lights look like with the lenses, reflector buckets, etc. removed:


After measuring the overall size of the Integra lights, I transferred those measurements to the Skyline headlight bucket, and cut the back out to accommodate the new lights:


Once the Skyline headlight buckets were cut out enough to house the integra lights, I set the lights into the buckets, ensuring that the alignment was in line with the tracking of the car...this meant a few trips to and from the car to ensure they were aligned correctly. Then, using a soldering iron and some of the plastic cut from the buckets, I plastic welded the Integra lights into the skyline buckets:


The Integra lights stuck out further than the Skyline lenses, so this meant the lenses needed to be cut out to accommodate the lenses protruding through them. This is where a lot of under-cutting and trimming was involved to make sure I didn't cut out too much material:

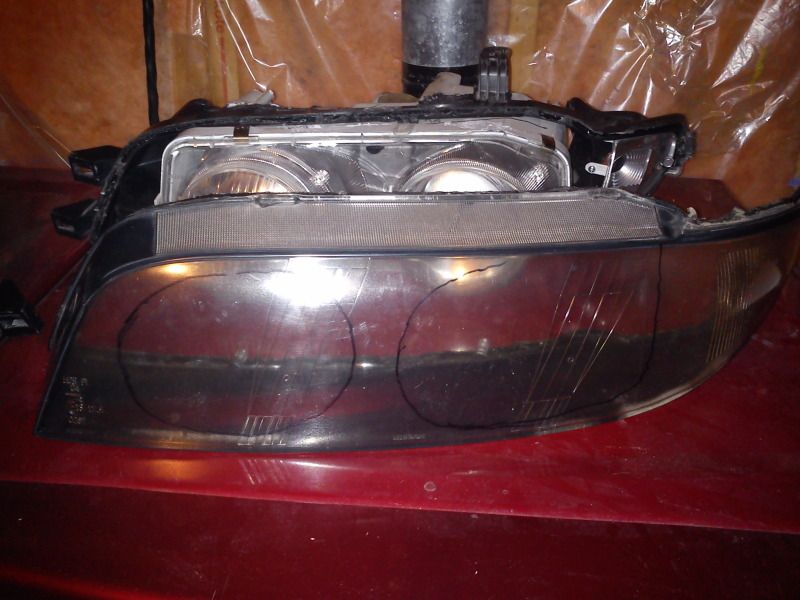

Stock lens marked up for the cut:

This lens was cut out around the edge from a different previous attempt at retrofitting, and had to be welded back together, hence the messed-up looking edges:


Once the lenses were cut to size, there were gaps between the lens of the Integra lights and the Skyline lenses. This was filled using some crescent-shaped shrouds cut from some ABS I had kicking around. I wish I had pictures of the shrouds themselves, but the pics were lost with my old phone. (sorry) Here is a pic with the shrouds installed with the lenses and nearly final assembled:

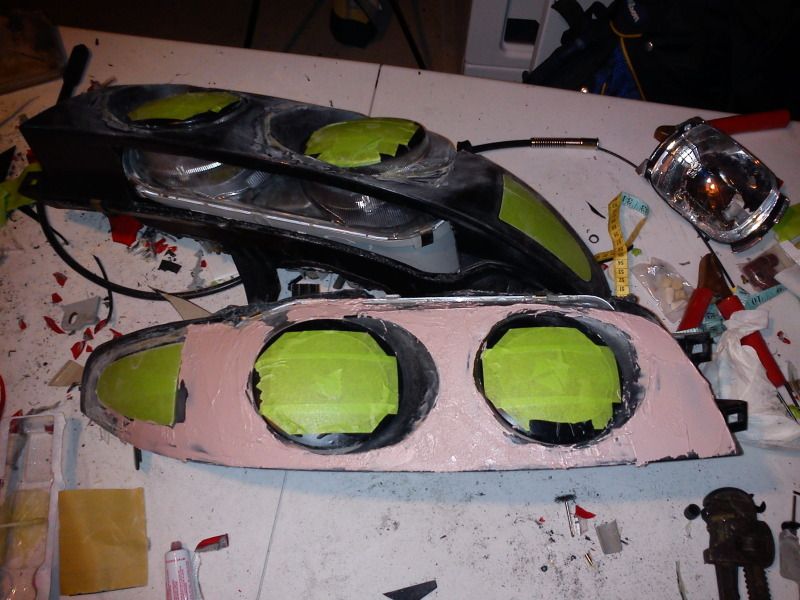

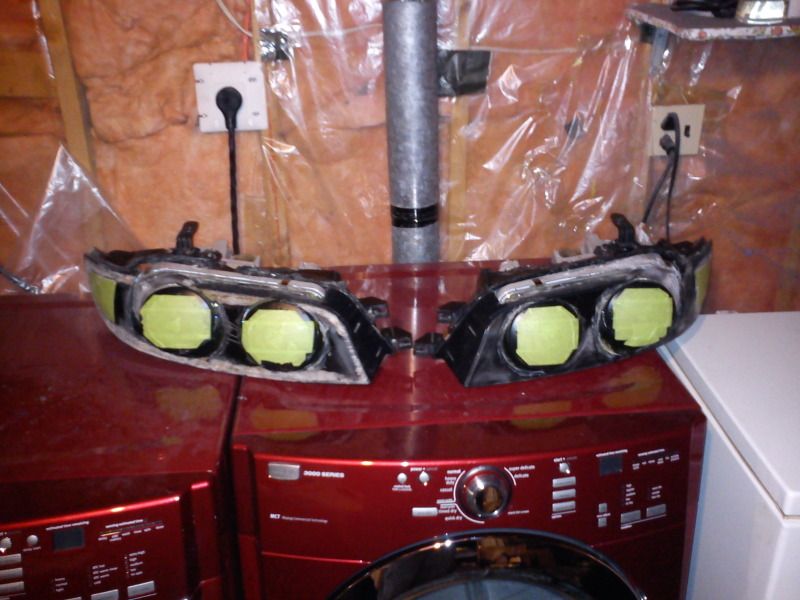

The lenses were masked off to protect them from the body filler stage, which was next:


Once the body filler was sanded smooth, the headlights were painted flat black (because my bodywork skills leave something to be desired)


The headlights were installed in the car, and aligned using the stock Integra adjustment screws. All the adjustability is still there, as is the integrity of the lights, as basically all I did was cut off the mounting points, graft new ones on (Skyline buckets), and add shrouds for aesthetics. The mechanics at Birchwood Nissan were very impressed with the fit and function, and I've been pulled over a few times, and cops have nothing to say about the lights.
