Author Topic: Street Machine --> A tale of an 06 Sti  (Read 17439 times)

February 03, 2014, 12:14 PM #0

I--RIDE--BIKES Offline

  • Regular Member
  • Posts: 247
  • Join Date: Jul 2012
    Location: Brandon
  • Vehicle: SGM 06 STI
  • Reputation Power: 24
  • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
This tale all began when I first purchased my Aspen White 06 sti back in 2011. It was magical. After an unfortunate accident in which the vehicle was in a rollover (I was ok luckily), I then found a beautiful, low mile SGM 06 sti that was even nicer that my previous unit.

Now this brings us here.












Current Mod List:

Engine and Go Fast Bits:
Cobb Accessport V2 - Protuned
Invidia N1 Race exhaust
Invidia V2 Catless Downpipe
GT Spec UEL Header & Uppipe (Ceramic Coated & Wrapped)
Kartboy Exhaust Hangers
Grimmspeed Heatshield
Cobb Intake and Cold Air Box
Cobb Crank Pulley
Walbro Fuel Pump
Killer B Oil Pickup Tube
Grimmspeed EBCS
Grimmspeed AOS
APS Twinvent BPV

Bushings and Mounts
Custom PitchStop Mount
Cusco Engine Mounts
Cusco Transmission Mounts
Kartboy Short Shifter
Kartboy Front and Rear Shifter Bushings
Whiteline Transmission Crossmember Bushings
TIC Clunk Killer Race
Kartboy Subframe Bolts
Beatrush Prop Shaft Bushings


Suspension Goodies

TiC SST Coilovers (7k/5k Springs)
Vorshlag Camber Plates
Whiteline Sport ALK
Whiteline Roll Center Kit
Whiteline Steering Rack Bushings
RCE Sway Bars
Kartboy Endlinks
Group-N Trailing Arm Bushings
Group-N Lateral Link Bushings
Custom Strut Bar
TIC Fender Braces
Oswald Front Bumper Beam
Oswald Rear Bumper Beam
Oswald Performance Rear Strut Brace
17x9.5 + 38 Enkei RPF1's
Falken RT615K 255/40R17
10mm 5mm Wheel Spacers (front) & Nismo Extended Lugs

Stopping
Girodisc Front & Rear 2pc Rotors
Front Ferodo DS2500 Pads
Rear Hawk HPS Pads
Stoptech SS Lines
Grimmspeed Master Cylinder Brace
Motul RBF600

Appearance and Randoms
Weathertech Floormats
JDM Red Hazard Button
OS Handle Delete's
V-Limited Style front Lip
08-10 STI Trunk Badge
Rally Armour Mudflaps
GrillCraft Upper Grilles
Black Painted Headlight Housing
TSX-R Clear Projector Lens Swap w/washer mod
LED Park Lights
Ixiz Hood Dampers
Ixiz Dead Pedal
04/05 Tailights
Subaru Foglights
Subtle Solutions Front Plate Delete
Rennenmetal Front & Rear Tow Hooks
CS Replica PU Sideskirts
Pioneer Touch Screen HU
Alpine Type S front Component Speakers
Wingless and Winged Trunk
Defi BF Advance Control Unit
Defi BF Oil Pressure, Boost, EGT Gauges

Here are some of the parts that I have built myself.

Pitchstop Mount


Modified Gtspec Strut Bar



Continued......:banana:
Last Edit: February 03, 2014, 12:26 PM by I--RIDE--BIKES
Insta: @lelandSTI
Ion Coating: Custom powder coating

    Top Tier Imports

    Street Machine --> A tale of an 06 Sti
    « on: February 03, 2014, 12:14 PM »

    February 03, 2014, 12:15 PM #1

    I--RIDE--BIKES Offline

    • Regular Member
    • Posts: 247
    • Join Date: Jul 2012
      Location: Brandon
    • Vehicle: SGM 06 STI
    • Reputation Power: 24
    • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
    And now this brings us to the part where I crave MORRREEEEE POWWWWWAAAA! Classic, I know.

    So I have now decided to increase power in the car, thus pushing it past the stock blocks "safe" capability. I am all about properly building my car, and not taking any shortcuts. This is why I decided to build the motor and not just go straight to the rotated turbo setup without properly strengthening the engine first.

    As of now, the time line looks like this:
    pull engine (done)
    disassemble engine (in the works)
    sell good shortblock/order new shortblock (February)
    install new shorthblock (March)
    break in motor (March)
    install rotated turbo setup (May/June)
    be very cool  :cool::cool: (Anytime after May/June)

    Shortblock Build list (subject to change)
    Outfront Closed Deck EJ25
    CP Pistons
    Manley H-tuff Rods
    King bearings
    ARP 2000 rod bolts and head studs

    Heads (keeping stock for now)
    deck
    refresh if needed

    This is all in an attempt to safely and consistently run a streetable 425-475 whp. The car will mainly be a summer DD with the occasional track session.

    The rotated turbo parts list looks as follows:

    Have:

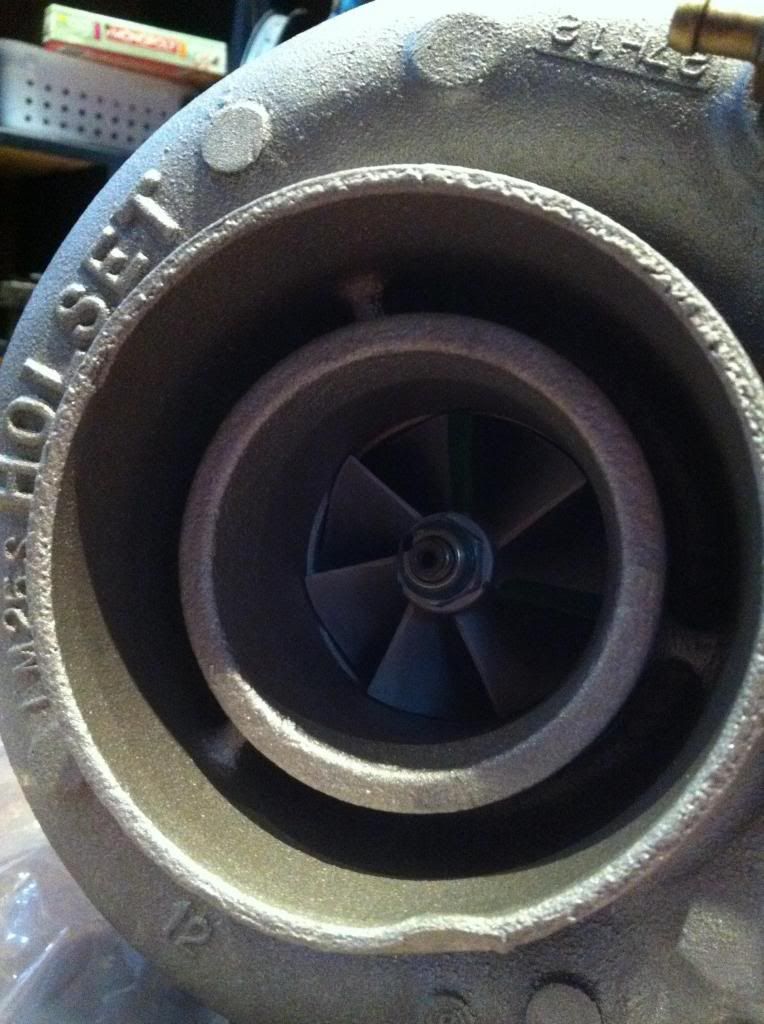

    Holset Hx35 7 blade w/ 0.63 a/r hotside
    T1 billet fuel rails
    Injector Dynamics 1000cc top feed injectors
    ACT HD pressure plate w/ 6 puck clutch disk
    ACT streetlite flywheel
    Uppipe and Downpipe fabricational components

    To Be Purchased (subject to change)
    Tial BOV
    Tial 44mm EWG
    Turbo oil feed and drain lines
    Fuel lines
    FPR with fuel pressure gauge
    FMIC core (making own endtanks)
    Custom intercooler piping
    Make up/down pipes and rerouted EWG dump tube
    A/C delete????
    Custom intake
    IAT and MAP sensors to run speed density
    Reversed intake manifold
    TGV delete
    Every gasket ever
    Tigwerks engine mounts
    EL header (tigwerks or techworks)


    Here are some pics of some parts and the process so far:













    Obligatory standing in engine bay greaser photo







    I can hardly wait to make more progress on her. When I get my week off here coming up I will be going hard on tearing in down and getting it fully ready for the new block.

    Enjoy!!!

    Update:

    SHORTBLOCK HAS BEEN ORDERED !!! As you can tell im very excited.

    On the order list was:
    -Outfront Motorsports closed deck EJ25
    -Manley H-tuff rods
    -CP pistons (stock compression)
    -Sti crank
    -King bearings

    -Gates racing timing belt/pullies and water pump kit
    -JE head gaskets

    Should see it later this week and will be posting pics then.
    Last Edit: February 03, 2014, 12:18 PM by I--RIDE--BIKES
    Insta: @lelandSTI
    Ion Coating: Custom powder coating

      February 03, 2014, 12:16 PM #2

      I--RIDE--BIKES Offline

      • Regular Member
      • Posts: 247
      • Join Date: Jul 2012
        Location: Brandon
      • Vehicle: SGM 06 STI
      • Reputation Power: 24
      • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
      Reserved
      Insta: @lelandSTI
      Ion Coating: Custom powder coating

        February 03, 2014, 12:21 PM #3

        david Offline

        • Posts: 828
        • Join Date: Mar 2013
          Location: Winnipeg, MB
        • Real Name: David
        • Vehicle: 1984 BMW 318i, 1995 Eagle Talon TSI
        • Reputation Power: 16
        • david has no influence.
        Nice build, where abouts did you get the hx35?

        Sent from my SGH-I747M using Tapatalk 2


          February 03, 2014, 12:27 PM #4

          I--RIDE--BIKES Offline

          • Regular Member
          • Posts: 247
          • Join Date: Jul 2012
            Location: Brandon
          • Vehicle: SGM 06 STI
          • Reputation Power: 24
          • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
          I got it from someone on these boards, in Winnipeg. Then had it sent away to Tims Turbo in the states and had it cleaned, balanced, rebuilt, with a new hotside (T3/3" vband, 0.63 a/r)
          Insta: @lelandSTI
          Ion Coating: Custom powder coating

            February 03, 2014, 02:39 PM #5

            evo1 Offline

            • Regular Member
            • Posts: 749
            • Join Date: Jun 2012
              Location: Brandon
            • Real Name: Mitch
            • Vehicle: 1992 Lancer Evolution RS, 6.7 SRW Mega Cab 3500
            • Reputation Power: 9
            • evo1 has no influence.
            Leland,
            Glad you found a hx35.
            I see you decided to switch hotsides. Doing so so you don't have to make a custom manifold?

            Interested in more info on the custom IC/End tanks...

            Looks like your build is going well..
            Have you thought about going with a better line of head studs from ARP or MAP?
            Also are those HG metal or composite?

            Mitch

              February 03, 2014, 03:03 PM #6

              I--RIDE--BIKES Offline

              • Regular Member
              • Posts: 247
              • Join Date: Jul 2012
                Location: Brandon
              • Vehicle: SGM 06 STI
              • Reputation Power: 24
              • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
              Hey Mitch,
              I switched hotsides because I wanted the smaller a/r ratio and also wanted the vband flange for the downpipe. I will still be making a custom up-pipe and downpipe for this setup and likely using the Tomei EL headers.

              I will be making my own custom routed IC piping for the rotated intake manifold and as of now, be fabbing/designing my own endtakes for the FMIC so that I have even more control over pipe routing.

              They are an MLS headgasket. Outfront Motorsports highly recommended them and uses them on all of their builds, so I trusted them on that choice.


              I actually have decided to go with the ARP 625+ headstuds, but potentially the MAP h11's. Ill see how I feel when that time comes, which is soon.
              Insta: @lelandSTI
              Ion Coating: Custom powder coating

                February 03, 2014, 04:43 PM #7

                david Offline

                • Posts: 828
                • Join Date: Mar 2013
                  Location: Winnipeg, MB
                • Real Name: David
                • Vehicle: 1984 BMW 318i, 1995 Eagle Talon TSI
                • Reputation Power: 16
                • david has no influence.
                Originally posted by I--RIDE--BIKES
                I got it from someone on these boards, in Winnipeg. Then had it sent away to Tims Turbo in the states and had it cleaned, balanced, rebuilt, with a new hotside (T3/3" vband, 0.63 a/r)

                Wow great find.

                Sent from my SGH-I747M using Tapatalk 2


                  February 03, 2014, 05:06 PM #8

                  Shaun Offline

                  • Posts: 9,410
                  • Join Date: Jan 2012
                    Location: Oakbank
                  • Vehicle: 1998 Civic, 2003 GS430
                  • Reputation Power: 370
                  • Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!Shaun is awe-inspiring!
                  Very nice build! Looking forward to updates.

                    February 03, 2014, 05:11 PM #9

                    Stefan Offline

                    • Regular Member
                    • Posts: 3,662
                    • Join Date: Nov 2012
                      Location: Winnipeg
                    • Real Name: Stefan
                    • Vehicle: 2004 WRX wagon
                    • Reputation Power: 48
                    • Stefan might someday be someone...Stefan might someday be someone...Stefan might someday be someone...Stefan might someday be someone...
                    Wow awesome build! I like.
                    build it - race it -  break it - do it all over

                      February 03, 2014, 05:17 PM #10

                      evo1 Offline

                      • Regular Member
                      • Posts: 749
                      • Join Date: Jun 2012
                        Location: Brandon
                      • Real Name: Mitch
                      • Vehicle: 1992 Lancer Evolution RS, 6.7 SRW Mega Cab 3500
                      • Reputation Power: 9
                      • evo1 has no influence.
                      Where's the IC core coming from?

                      Also is there anything that you need to do to your built short block to ensure proper oiling?

                        February 03, 2014, 08:28 PM #11

                        I--RIDE--BIKES Offline

                        • Regular Member
                        • Posts: 247
                        • Join Date: Jul 2012
                          Location: Brandon
                        • Vehicle: SGM 06 STI
                        • Reputation Power: 24
                        • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                        I haven't fully decided on the core just yet, but im leaning towards a vibrant core. I spoke with some guys from Element Tuning and they had really good things to say about it and recommended it sooo....

                        Outfront said I shouldn't have any problems with my block with using the stock oil pump. So no, there isn't really anything special that I need to do. I will be installing a larger oil pan at some point but isn't really a necessity at all.
                        Insta: @lelandSTI
                        Ion Coating: Custom powder coating

                          February 03, 2014, 09:27 PM #12

                          sandman63 Offline

                          • Regular Member
                          • Posts: 36
                          • Join Date: Apr 2012
                            Location: Winnipeg
                          • Vehicle: 2009 Subaru STI
                          • Reputation Power: 1
                          • sandman63 has no influence.
                          Great build. Saw it on iwsti as well.

                            February 03, 2014, 11:50 PM #13

                            Lou Offline

                            • Regular Member
                            • Posts: 718
                            • Join Date: Jun 2013
                              Location: Winnipeg
                            • Real Name: Louis
                            • Vehicle: 2017 Toyota 86
                            • Reputation Power: 35
                            • Lou is working their way up.Lou is working their way up.Lou is working their way up.
                            Wow sweet build! I saw this car when I was camping at clear Lake last year and couldn't resist snapping a few pictures of it.

                            Sent from my SM-N900W8 using Tapatalk


                              February 06, 2014, 11:55 AM #14

                              I--RIDE--BIKES Offline

                              • Regular Member
                              • Posts: 247
                              • Join Date: Jul 2012
                                Location: Brandon
                              • Vehicle: SGM 06 STI
                              • Reputation Power: 24
                              • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                              I placed the last few orders for parts over the past couple days here. One order of a bunch of random gaskets and seals, and just placed an order with MAP for some H11 head studs.
                              Insta: @lelandSTI
                              Ion Coating: Custom powder coating

                                February 07, 2014, 04:01 PM #15

                                tytanium Offline

                                • Posts: 1,149
                                • Join Date: Sep 2012
                                  Location: Winnipeg
                                • Real Name: Tyler
                                • Vehicle: 07 Mazdaspeed 3, 06 Civic DX-G
                                • Reputation Power: 84
                                • tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.tytanium is a force to reckon with.
                                gorgeous looking car. where did you get that lip? im looking to pick up the same one soon
                                #boostedhatchcrew

                                  February 09, 2014, 08:45 PM #16

                                  Miguel Offline

                                  • Regular Member
                                  • Posts: 927
                                  • Join Date: Oct 2013
                                    Location: Winnipeg
                                  • Reputation Power: 74
                                  • Miguel has a powerful will.Miguel has a powerful will.Miguel has a powerful will.Miguel has a powerful will.Miguel has a powerful will.Miguel has a powerful will.Miguel has a powerful will.
                                  Journals like these are the reason I want a subbie. Beautiful car man! I hope one day ill own something like this.
                                  #DRIVEN2017 #IMPORTSOMETHING2017

                                  [Mar 13 11:28:02] Shaun:ur gonna play 20 questions with me like that oil cap arent u

                                    February 21, 2014, 08:59 PM #17

                                    I--RIDE--BIKES Offline

                                    • Regular Member
                                    • Posts: 247
                                    • Join Date: Jul 2012
                                      Location: Brandon
                                    • Vehicle: SGM 06 STI
                                    • Reputation Power: 24
                                    • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                                    I did a border run the other day and picked up a ton of shiny goodies. The short block is beautiful. I can't stop staring at the bloody thing.

                                    Pretty soon here I will start putting this thing back together!





                                    Insta: @lelandSTI
                                    Ion Coating: Custom powder coating

                                      February 24, 2014, 01:23 AM #18

                                      Canadian CD9A Offline

                                      • Regular Member
                                      • Posts: 751
                                      • Join Date: Jun 2012
                                        Location: O'er d'er
                                      • Vehicle: AP1 - CD9A - 5F07F
                                      • Reputation Power: 50
                                      • Canadian CD9A is on the verge of being accepted.Canadian CD9A is on the verge of being accepted.Canadian CD9A is on the verge of being accepted.Canadian CD9A is on the verge of being accepted.Canadian CD9A is on the verge of being accepted.
                                      I respect this.
                                      Originally posted by: Forced Performance
                                      Your significant other can only be mad for a while but your car can be slow forever.
                                      Quote (selected)
                                      The perfect race car is the fastest thing on the track and then explodes after crossing the finish line.
                                      AWD Turbo Whiners Club

                                        February 24, 2014, 08:06 PM #19

                                        BenzAMG Offline

                                        • Posts: 731
                                        • Join Date: May 2012
                                          Location: Winnipeg
                                        • Real Name: Bravon Wan
                                        • Vehicle: 2016 Mercedes-AMG C63 S
                                        • Reputation Power: 21
                                        • BenzAMG barely matters.BenzAMG barely matters.
                                        good gawd that block is beautiful, I can't wait to order my new block after seeing this!
                                        The Mint Man

                                        1985 Corolla GTS - RIP
                                        1990 CRX Si - Sold
                                        2012 WRX STI - Sold

                                          March 07, 2014, 02:01 PM #20

                                          I--RIDE--BIKES Offline

                                          • Regular Member
                                          • Posts: 247
                                          • Join Date: Jul 2012
                                            Location: Brandon
                                          • Vehicle: SGM 06 STI
                                          • Reputation Power: 24
                                          • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                                          Ordered some Federal 595RS-R 255/40 r17's yesterday for the upcoming season and will be starting the engine assembly here in the next week or so after I pick up a proper Mac torque wrench. Should be fun!
                                          Insta: @lelandSTI
                                          Ion Coating: Custom powder coating

                                            March 16, 2014, 12:43 AM #21

                                            I--RIDE--BIKES Offline

                                            • Regular Member
                                            • Posts: 247
                                            • Join Date: Jul 2012
                                              Location: Brandon
                                            • Vehicle: SGM 06 STI
                                            • Reputation Power: 24
                                            • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                                            The tires came in the other day and look awesome. Should be a lot better than my old worn Azenis i was running.

                                            As for the motor. I have pretty much the whole long block assembled now, but just waiting on 2 seals that should be in my hands today, and on the block tomorrow. Then monday looks like the day when it will be shoved back into the car. I just PRAYYYYYYY that I don't have any leaks since there are so many sealing surfaces on these things. My water pump looked like it had maybe been banged around in shipping a bit since the gasket surface had little marks on it. So if something is going to leak, my money is on that. But lets see how it plays out  :P

                                            Ill post up some pics in the following days
                                            Insta: @lelandSTI
                                            Ion Coating: Custom powder coating

                                              March 19, 2014, 01:19 AM #22

                                              Stoyka Offline

                                              • Posts: 486
                                              • Join Date: May 2012
                                                Location: Oakbank
                                              • Real Name: Brendin
                                              • Vehicle: 97' STI-R coupe/81 VW Pickup
                                              • Reputation Power: 16
                                              • Stoyka has no influence.
                                              Man you must be super stoked to get her going! Youre definitely right about that sealant stuff too, sketchy stuff man. Hope it all works out! :D
                                              "I used to play COD on Xbox till I found out how many 12 year olds were fu**king my mom...and there were alot"

                                                March 19, 2014, 10:23 AM #23

                                                I--RIDE--BIKES Offline

                                                • Regular Member
                                                • Posts: 247
                                                • Join Date: Jul 2012
                                                  Location: Brandon
                                                • Vehicle: SGM 06 STI
                                                • Reputation Power: 24
                                                • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                                                I should be firing it up within the next day or so here, maybe even tonight. But if I do have water pump sealing issues, its fairly easy to get at comparatively. But yes, Im wayyyyy to excited!
                                                Insta: @lelandSTI
                                                Ion Coating: Custom powder coating

                                                  March 21, 2014, 12:03 AM #24

                                                  I--RIDE--BIKES Offline

                                                  • Regular Member
                                                  • Posts: 247
                                                  • Join Date: Jul 2012
                                                    Location: Brandon
                                                  • Vehicle: SGM 06 STI
                                                  • Reputation Power: 24
                                                  • I--RIDE--BIKES barely matters.I--RIDE--BIKES barely matters.
                                                  i primed the engine with oil today and that went really smoothly actually. So i think I will see if I have enough time to turn it over for the first time tomorrow!
                                                  Insta: @lelandSTI
                                                  Ion Coating: Custom powder coating

                                                    Top Tier Imports

                                                    Street Machine --> A tale of an 06 Sti
                                                    « Reply #24 on: March 21, 2014, 12:03 AM »
